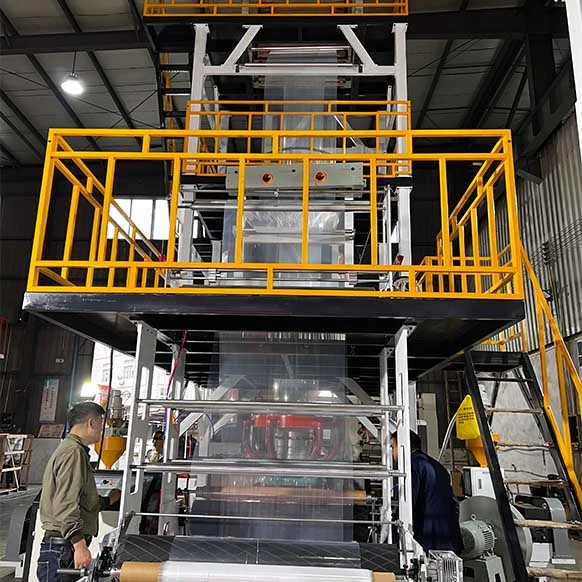

Three Layer ABC Blown Film Machine

The production line of three-layer co-extrusion Film Blowing Machine has advanced automation functions, such as centralized feeding, batching, weight control, IBC internal cooling, automatic thickness control, and automatic central winding. All functions are integrated on the touch screen, thus simplifying operations and increasing productivity. Besides reducing a significant amount of raw material used in the formula, another advantage of the ABC machine is that the 3 layer film that it produces is 30% stronger than film produced by a mono layer extruder.

Contact Guolian now and get 3 layer blown film extrusion machine price!

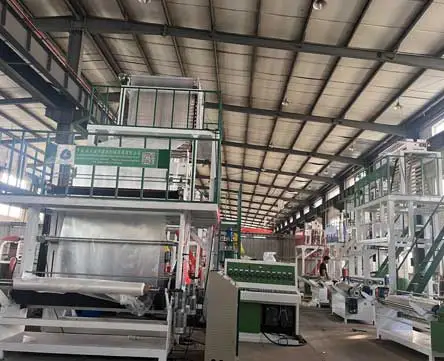

Features of Three Layer ABC Blown Film Machine

Features of Three Layer ABC Blown Film Machine
  • 30% Stronger Film

  • 50% Cost Saving

  • 100% Recycled Material Used

  • Application: T-shirt bags, shopping bags, garbage bags etc.

  • Suitable Material: HDPE, LDPE, LLDPE

  • Film Width from 500~2000mm

  • Extruder Dia: 40mm, 45mm, 55mm, 65mm, 80mm

  • Output: 45~200 kg/hr

Specification of Three Layer ABC Blown Film Machine

Model NameABC 3layer Blown Film Machine
Final ProductHDPE, LDPE, LLDPE Plastic Film
ApplicationFlexible packaging bags, T-shirt bag, garbage bag, shopping bag
Material usedHDPE, LDPE, LLDPE virgin raw material, recycled material, biodegradable material,
Output range45~200kg/hr (depends on extruder size)
Film LayerMultilayer - ABA Three layer
Screw Diameter40, 45, 55, 65, 80mm (customized)
Screw L/D28/1, 30/1, 32/1(customized)
Screw Material38 CRMOALA
Thickness0.01~0.1mm (customized)
Optional DevicesAuto loader, rotary die head, corona treater, automatic winder, double winder, EPC, mixing machine, automatic gravimetric device
Delivery Time30days
Warranty1 year
Technical AssistanceEngineers available to service machinery overseas

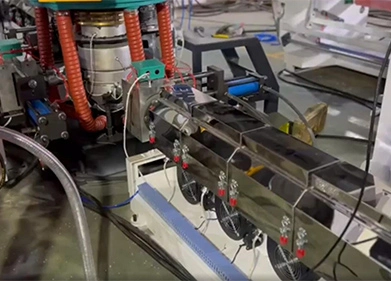

Video of Three Layer ABC Blown Film Machine

Video of Three Layer ABC Blown Film Machine

Applications of 3 Layer Blown Film Plant For Sale

Packaging Industry: One of the primary applications of a 3-layer blown film plant is in the packaging industry. The plant can produce multi-layer films with excellent barrier properties, suitable for packaging a wide range of products including food items, pharmaceuticals, cosmetics, and industrial goods.

Food Packaging: The plant can produce food-grade films that meet the stringent requirements for packaging perishable goods. These films provide protection against moisture, oxygen, and other contaminants, extending the shelf life of food products and maintaining their freshness.

Agricultural Films: The agricultural industry utilizes plastic films for various purposes such as greenhouse covers, mulching films, and silage bags. A 3-layer blown film plant can manufacture films with specific properties like UV resistance, durability, and puncture resistance, which are essential for agricultural applications.

Construction Industry: Plastic films produced by the plant can be used in the construction sector for applications such as moisture barriers, protective covers for building materials, and insulation films. The films can offer weather resistance and durability required for outdoor construction projects.

Medical and Healthcare: The plant can manufacture medical-grade films used in the healthcare industry for packaging medical devices, pharmaceutical products, and sterile supplies. These films must meet strict quality and regulatory standards to ensure the safety and integrity of the packaged items.

Lamination: Multi-layer films produced by the plant can be used as lamination films for enhancing the properties of packaging materials, such as adding strength, barrier protection, or aesthetics. Laminated films find applications in flexible packaging, printing, and labeling industries.

Industrial Applications: Plastic films from the 3-layer blown film plant can serve various industrial applications such as protective covers, wrapping materials, and insulation films. These films can provide chemical resistance, heat sealability, and other properties tailored to specific industrial requirements.

Customized Films: The plant can offer flexibility in producing customized films with specific properties, colors, thicknesses, and sizes according to the requirements of customers in different industries.
